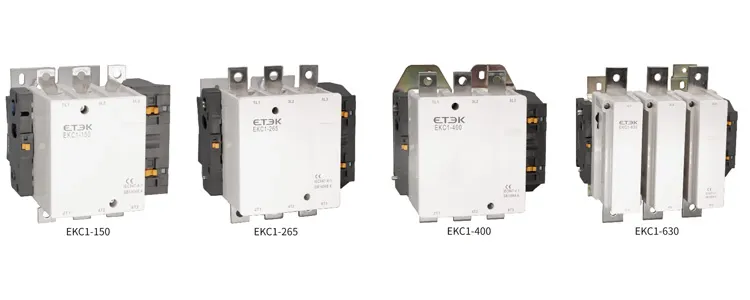

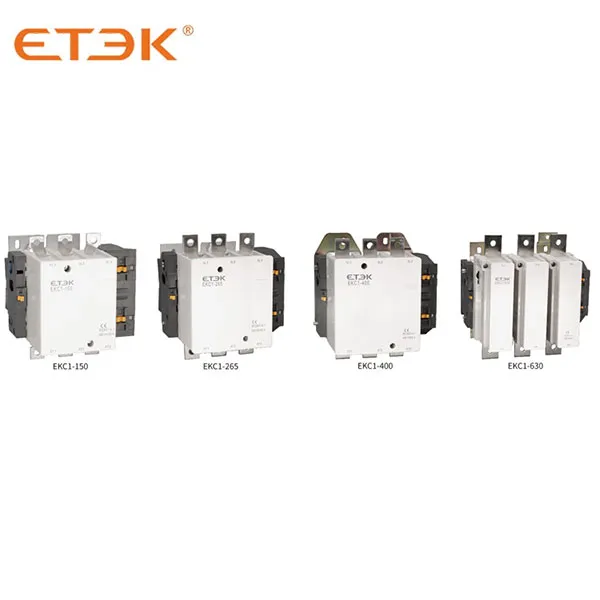

Контакторы ETEK EKCC для коммутации конденсаторов, контактор для конденсаторов
Запросить
| Приложение | дистанционное включение и выключение цепей |
| защитить цепь от перегрузки при сборке с тепловым реле перегрузки | |
| частый запуск и управление контактором переменного тока | |
| Электрическая ценность | Переменный ток 50/60 Гц, 690 В, до 1000 А |
| Категория использования | АС-3, АС-4 |
| Высота | ≤2000м |
| Температура окружающей среды | -5℃~+40℃ |
| Категория монтажа | Ⅲ |
| Условия монтажа | Наклон между плоскостью крепления и вертикальной плоскостью не должен превышать ±5°. |
| Стандарт | МЭК/ЕН 60947-4-1 |
Работа катушки переменного тока | Вольты (VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | |
| Код | 50 Гц | В5 | С5 | Д5 | Е5 | Ф5 | Г5 | М5 | П5 | У5 | Q5 | Н5 | Р5 | - | С5 | Y5 | |
| 60 Гц | В6 | - | Д6 | Е6 | Ф6 | Г6 | М6 | 0 | У6 | Q6 | 0 | Р6 | Т6 | - | - | ||
| 50/60Гц | В7 | - | Д7 | Е7 | Ф7 | - | М7 | - | Q7 | Р7 | - | - | - | ||||
Работа катушки постоянного тока | Вольты (VDC) | 12 | 24 | 36 | 48 | 110 | 220 |
| Код | ЖД | БД | компакт-диск | ЭД | ФД | МД |
| ЭК | С | 1 | 115 | 4 | З |
Код компании | Контактор | Последовательность проектирования № | Основные технические характеристики, выраженные в номинальном рабочем токе (380 В/400 В, AC3) | 4: Основная цепь 4P Пусто: Основная цепь 3P | Z: работа на постоянном токе Пусто: работа от переменного тока |
| Стандарт | МЭК/EN60947-4-1 | ||||||||||||
| Модель № | ЭКЦ1-115 | ЭКЦ1-150 | ЭКЦ1-185 | ЭКЦ1-225 | ЕКЦ1-265 | ЕКЦ1-330 | ЭКЦ1-400 | ЭКЦ1-500 | ЕКЦ1-630 | ЕКЦ1-780 | ЕКЦ1-800 | ЭКЦ1-1000 | |
| Номинальный Обычный Ток нагрева | Ит(А) | 200 | 200 | 275 | 275 | 315 | 380 | 460 | 580 | 850 | 1200 | 850 | 1200 |
| Номинальное напряжение Ui(В) | Ui(В) | 690 | |||||||||||
| Номинальный рабочий ток Uэ=380/415В | АС-3 Иэ(А) | 115 | 150 | 185 | 225 | 265 | 330 | 400 | 500 | 630 | 780 | 800 | 1000 |
| АС-4 Иэ(А) | 52 | 60 | 79 | 86 | 105 | 117 | 138 | 147 | 188 | 240 | 195 | 320 | |
| Управляемая мощность 3 фазы Двигатель переменного тока AC-3 | 380/415В кВт | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 335 | 400 | 400 | 500 |
| 660/690В кВт | 80 | 100 | 110 | 129 | 160 | 220 | 280 | 335 | 450 | 475 | 475 | 560 | |
| Электрическая жизнь (x103 операций) | АС-3 | 600 | 600 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 200 | 200 | 200 |
| АС-4 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 50 | 50 | 50 | |
| Механическая жизнь (x106 операций) | 6 | 6 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 2 | 3 | 2 | |
| Подходящий предохранитель | Размер | РТ16-1 | РТ16-2 | РТ16-2 | РТ16-2 | РТ16-2 | РТ16-3 | РТ16-3 | РТ16-4 | РТ16-4 | РТ16-4 | РТ16-4 | РТ16-4 |
| А | 200 | 225 | 315 | 315 | 355 | 450 | 500 | 630 | 800 | 1250 | 800 | 1250 | |
| Основная цепь | 3P или 4P | ||||||||||||
| Модель | Сечение кабеля (Cu) | размер винта | Момент затяжки (Нм) | ||
| Количество штук | Сечение кабеля (мм2) | Сечение медной шины (мм2) | |||
| ЭКЦ1-115 | 1 | 70~90 | - | 3 | М6 |
| ЭКЦ1-150 | 1 | 70~90 | - | 6 | М8 |
| ЭКЦ1-185 | 1 | 95~150 | - | 6 | М8 |
| ЭКЦ1-225 | 1 | 95~150 | - | 10 | М10 |
| ЕКЦ1-265 | 1 | 120~185 | - | 10 | М10 |
| ЕКЦ1-330 | 1 | 185~240 | - | 10 | М10 |
| ЭКЦ1-400 | 1(2) | 240(150) | 30×5 | 10 | М10 |
| ЭКЦ1-500 | 2 | 150~185 | 40×5 | 10 | М10 |
| ЕКЦ1-630 | 2 | 185~240 | 50×5 | 14 | М12 |
| ЕКЦ1-800 | 2 | 185~240 | 50×5 | 14 | М12 |

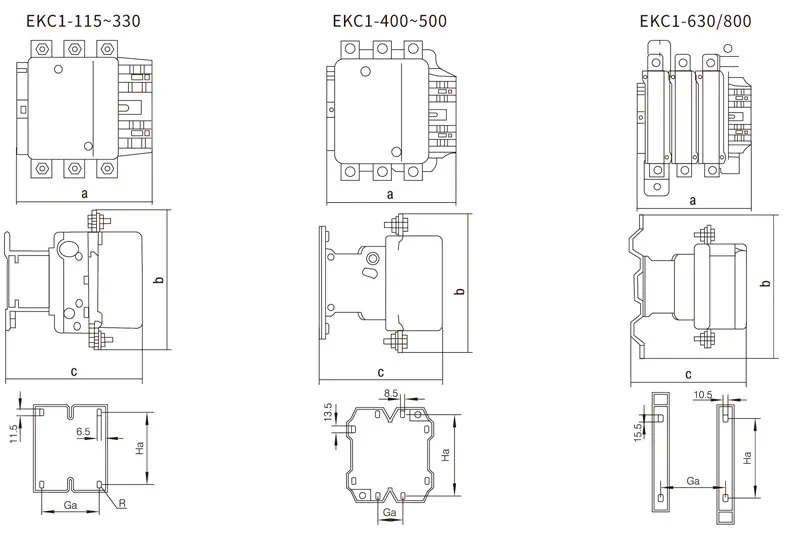

| Модель | Макс. | Б макс. | С макс. |  |
| ЕКС1-115 | 163,5 | 162 | 171 | |
| ЕКС1-150 | 163,5 | 170 | 171 | |
| ЕКС1-185 | 168,5 | 174 | 181 | |
| ЕКС1-225 | 168,5 | 197 | 181 | |
| ЕКС1-265 | 201,5 | 203 | 213 | |
| ЕКС1-330 | 213 | 206 | 219 | |
| ЕКС1-400 | 213 | 206 | 219 | |
| ЕКС1-500 | 233 | 238 | 232 | |
| ЕКС1-630/800 | 309 | 304 | 255 |
